Wanco 24kW Mobile Tier 4 Final Generator - $22,500
QR Code Link to This Post
• 480/277VAC 3-Phase 36.1 Amps per Phase Prime at .8 Power Factor
• 208/120VAC 3-Phase 83.3 Amps per Phase Prime at .8 Power Factor
• 240/120VAC Single Phase 70.8 Amps Prime
POWER CONNECTIONS
Protected by Main Circuit Breaker
• Leviton Series 16 400A Female Camlocks (L1, L2, L3, N, G)
• Copper Lugs for connecting stripped leads (L1, L2, L3, N, G)
Receptacles Protected by Individual Circuit Breakers
• 2x 120V 20 Amp GFCI duplex outlets (NEMA 5-20R)
• 2x 120/240V 50 Amp locking (CS6369)
SYSTEM CONTROLLER
Deep Sea Electronics DSE7320MkII Digital Controller
• Backlit and heated LCD display for 24/7 all-weather operation
• -40°F to 185°F (-40°C to 85°C) operating temperature
• Configurable event log
• Displays engine SPN/FMI diagnostic messaging
• Programmable PLC for adding custom functionality
• Manual or Automatic starting
• Operator-selectable information screens
• Programmable exercise scheduler
Engine Information
• Engine speed
• Fuel Level
• Battery / Charge Alternator voltage
Alternator Information
• kW and kVA power output
• Line currents
• Line-to-line and line-to-neutral voltages
• Frequency
Selectable Alarm Levels - Indication, Warning or Shutdown
• kW and kVA overload
• Overcurrent with programmable IDMT curve
• Short circuit with programmable IDMT curve
• Under/over voltage with programmable delay
• Under/over frequency with programmable delay
• Low/High fuel level
• Over speed
• Battery voltage
• Charge alternator failure
ENCLOSURE
Rental-grade 12ga galvanized steel with UV resistant polyester powder coat
• Sound attenuated with inlet baffles and sound-foam
• Lockable control box door with diagnostics viewing window
• Key- or pad-lockable enclosure including fuel fill

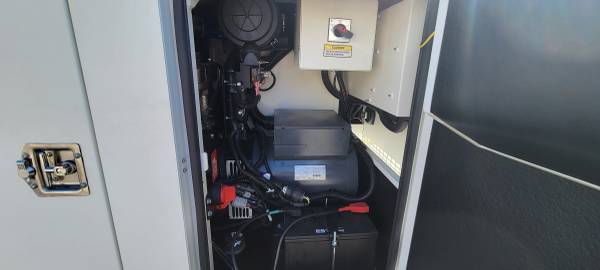

• Vibration dampers isolate engine/generator from the enclosure
• External JIC10 fuel supply/return connections
• Internal/external fuel selector valve
• Fuel, oil and coolant drains plumbed to exterior
• 12VDC BCI Group 27 650CCA cranking battery
• Battery disconnect switch
• Fork lift pockets
• Emergency stop switch
• Central lifting point
• Document holder with operating manual - printed and pdf on
SKID FUEL TANK
10ga double wall, 100% pressure tested before shipment
• 110% Containment with drain
• 60 gal. (273 L) capacity
o 27 hr. run time - 100% load
o 36 hr. run time - 75% load
o 54 hr. run time - 50% load
o 108 hr. run time - 25% load

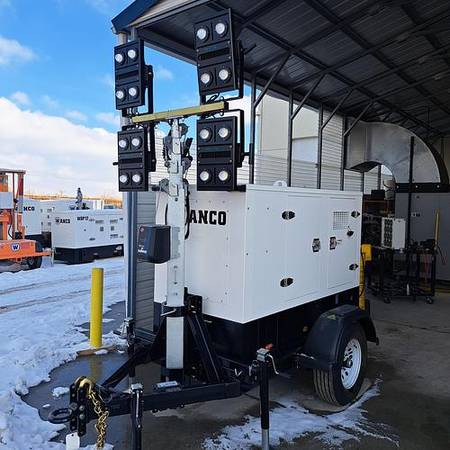

LIGHT TOWER - Optional (must specify at time of order)
Four 350W Zero Maintenance LED Luminares or Four 480W Zero Maintenance LED Luminares
• 24.5ft high mast (30ft also available)
• Full 360 degree swivel base - adjustable even when fully extended
• Each luminaire can be pointed left, right, up or down as needed
• Dual outriggers for enhanced stability
TRAILER
Welded Steel C-Channel Construction
• Electric brakes with battery backup
• Torsion axle
• DOT approved LED tail, side, brake, and directional lights
• Transportation tie downs
• Safety chains with spring loaded safety hooks
• 3 inch pintle ring
• Rugged A-frame hitch structure
• ST225/75D15 load rating C tubeless tires
• Standard 7-pin round connector
• Illuminated license plate bracket
WEIGHTS & DIMENSIONS
Skid Mounted
• Dry weight: 2920 lbs. (1327 kg)
• Operating weight: 3340 lbs. (1518 kg)
• 80 x 38 x 60 (2.03 x 0.96 x 1.52 m)
Trailer Mounted
• Dry weight: 3670 lbs. (1668 kg)
• Operating weight: 4090 lbs. (1859 kg)
Light Tower Trailer Mounted
• Dry weight: 4440 lbs. (2018 kg)
• Operating weight: 4860 lbs. (2209 kg)
WARRANTY
2 years/2,000 hours
Engines and alternators used in Wanco mobile generators carry a separate
manufacturers (OEM) warranty (the “OEM Warranties”), unless otherwise expressly
stated. All warranty claims for defects in material and/or workmanship on Wanco
product OEM components should be directed through the OEM distributor/dealer network. OEM
Warranties may vary and are subject to change. Wanco shall have no liability under OEM warranties
