Velox VR-2525 CNC Router Low hours - $5,800 (Fairbanks)
QR Code Link to This Post
Good business machine and opportunity.
Capabilities:
Cut & route all wood, plastics, UHMW, aluminum, etc.
Includes a water table for using diamond bits for engraving and cutting marble, slate, stones and other.
Uses: Souvenir and art manufacturing, parts manufacturing, awards recognition and sign making. Production of repetitive use items, etc. Includes several files for the souvenir and art manufacturing side. Creative types will never be bored and business people will have a multipurpose tool.
Specifications:

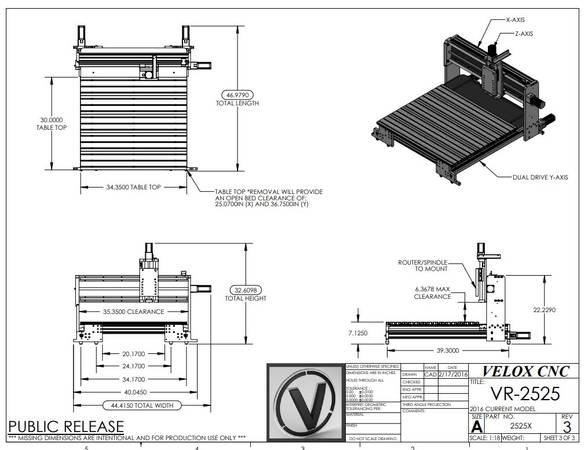

Travel of 24”x24” or a bit more (factory says 28")
8" Z axis clearance.
Aluminum extruded T-Slot table top with 3/4" spoil board.
Water cooled 220V 24000RPM 2.2KW Spindle with VFD control
Home switches on all axis
Nema-23 400oz/in stepper motors. One on X axis, two on Y-Axis and one on Z-axis All of the electronics are in one case.
Cable management on all axis

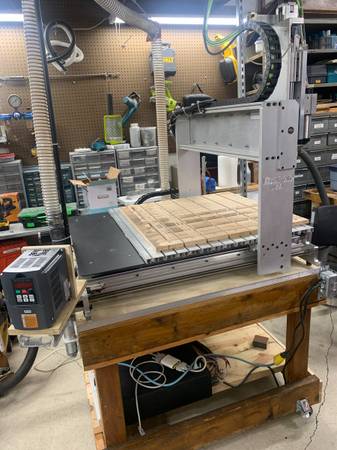

The machine is mounted on a solid table with roller wheels and levelers.

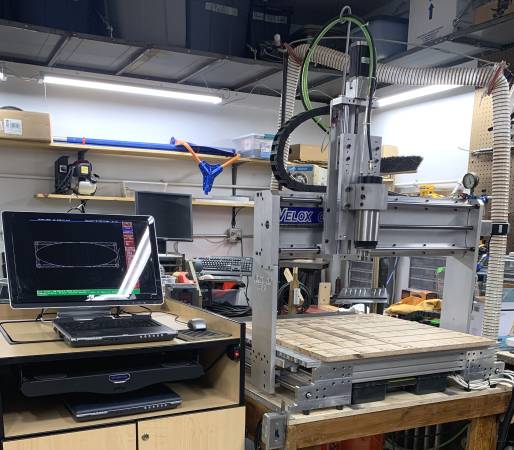

Operator podium for comfort and storage. This is not required (if you need the floor space) as a laptop does the job. A photo shows a red shelf and monitor setup if you prefer this style.
Includes Lots of stuff:
1. Two Toshiba laptops with software that runs directly to the electronics via the CNC control software which combines a user CAD interface (design) to actual machine operation. It is easy to use, run and understand and it looks like AutoCAD. I prefer this method for routing because it is simple easy and my projects just involve layout, engraving and cutting.
2. One HP laptop with Win8. Includes unlicensed Mach 3 software that runs the router electronics via an Ethernet cable for control. Included is a Smooth Step Ethernet control box which runs the axis. This is very common software (Mach 4 or 3) used by thousands of operators and has lots of features. Detailed 3D engraving requires extra attention by the operator and using Mach (or other) is a good choice.
Assortment of router bits both 1/4, 3/8 and 1/2 inch.
Dimond bits for routing marble and stone, etc.
Lots of collet sizes and extra nuts. All ER20 size
Water table and flushing pump for marble engraving.
Shop vac for dust collection
Hold down tools and accessories required to work.
Dust collector attachment with hose set for a shop vac.
Cables, spares and operating, parts and software manuals.
A very nice and solid machine
